Technical Data
CR39 1.499 Semi Finished Lens | ||||||||
Material: 1.499 Index Resin(Ne=1.50, Abbe value=57, Specific gravity=1.33 ) | ||||||||
Diameter (mm) | Nominal Curve | Front Radius | T.C | Back Radius | BACK T.C | CT/ET | Frong sag Ring (50mm) | RX Range Recommended |
ɸ70 | 100B | 1921.45 | 0.28 | 87.43 | 6.06 | 8.3/15.5 | 0.16 | -7.25Dto-10.00D |
ɸ70 | 200B | 265.36 | 2.00 | 102.68 | 5.16 | 8.3/12.0 | 1.18 | -5.25Dto-7.00D |
ɸ70 | 400B | 130.23 | 4.07 | 102.68 | 5.16 | 9.7/11.0 | 2.42 | +2.00Dto-5.00 |
ɸ70 | 500B | 105.56 | 5.02 | 139.54 | 3.80 | 8.0/6.5 | 3.00 | +3.00Dto-3.00 |
ɸ70 | 600B | 87.37 | 6.07 | 139.54 | 3.80 | 10.2/7.8 | 3.65 | 0.00Dto+4.00D |
ɸ70 | 700B | 76.02 | 6.97 | 139.54 | 3.80 | 10.0/6.0 | 4.23 | +2.00Dto+5.00D |
ɸ70 | 800B | 64.79 | 8.18 | 90.92 | 5.83 | 9.5/6.8 | 5.02 | +4.25Dto+6.00D |
ɸ70 | 900B | 57.12 | 9.28 | 87.25 | 6.07 | 10.7/6.0 | 5.76 | +6.25Dto+8.00D |
ɸ70 | 1000B | 51.74 | 10.24 | 87.25 | 6.07 | 13.5/7.2 | 6.44 | +8.25Dto+10.00D |
ɸ70 | 1200B | 43.38 | 12.22 | 87.25 | 6.07 | 15.0/5.0 | 7.93 | +10.00Dto+12.00D |

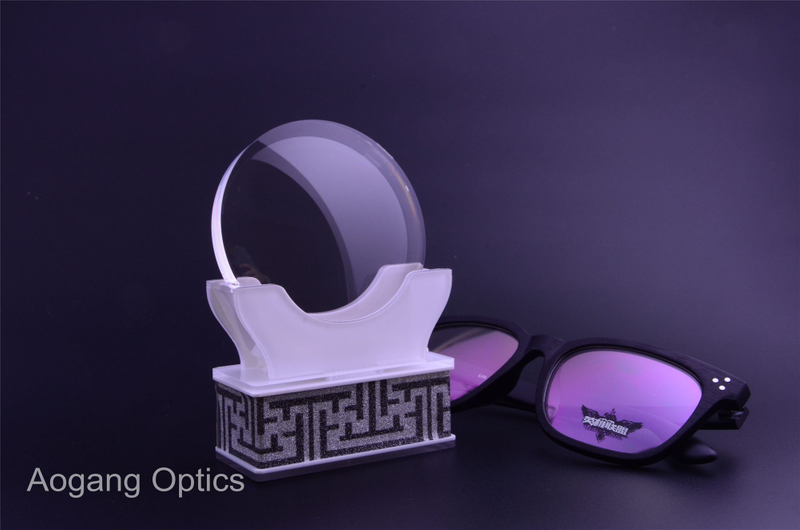

Production | 1.499 semi finished single vision lens |
Monomer | PPG |
Diameter | 55/65/70mm |
Coating Choice | HC |
Abbe value | 58 |
Specific Gravity | 1.32 |
Transmission | >96% |
Guarantee years | 5 years |
Power range | Base: 50~1000 |
Features
Semi Finished Lens:
The starting point for freeform production is a semi-finished lens, also known as a puck due to its resemblance to an ice hockey puck. These are produced in a casting process that is also used to manufacture stock lenses. The semi-finished lenses are produced in a casting process. Here, liquid monomers are first poured into moulds. Various substances are added to the monomers, e.g. initiators and UV absorbers. The initiator triggers a chemical reaction that leads to hardening or "curing" of the lens, while the UV absorber increases the UV absorption of the lenses and prevents yellowing.
CR39 Features:
1 ) . The better among other index lenses in hardness and toughness , high impact resistance .
2 ) . The more easily tinted than other index lenses.
5 ) . The more reliable and consistent lens product physically and optically . 6 ) . The more popular in the middle level countries . |
Coating
Hard Coating is also named anti-scratch coating, can protect uncoated lenses from impact and scratch resistance. |
