Eyeglass Semi Finished Lens Blanks 1.56 Single Vision High Transmission
Home » Products » Semi Finished Lens » SF 1.56 Single Vision Lens » Eyeglass Semi Finished Lens Blanks 1.56 Single Vision High Transmission
Share to:

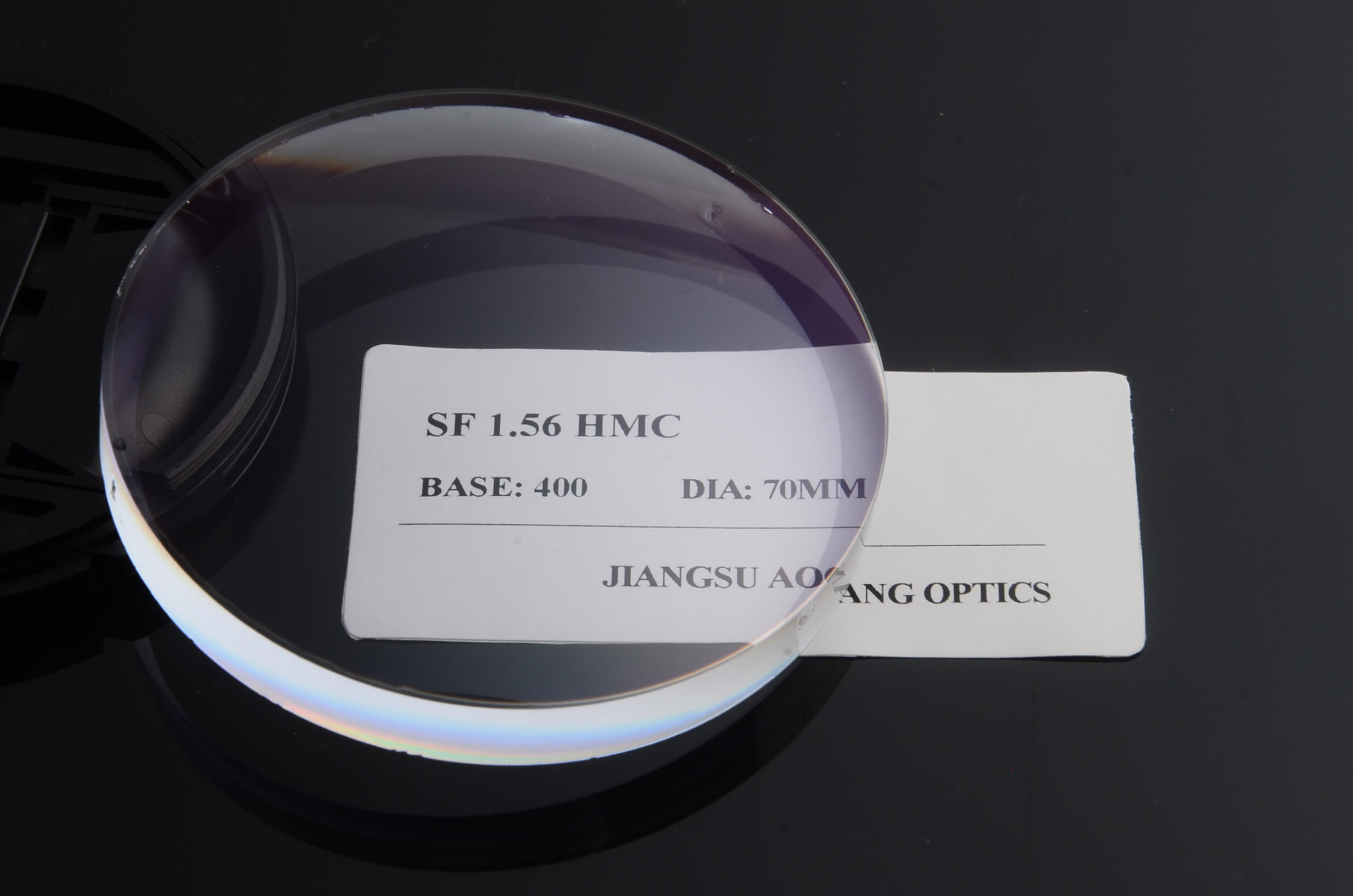

Eyeglass Semi Finished Lens Blanks 1.56 Single Vision High Transmission

  • SF 1.56 HMC AR
  • Aogang
  • SF 1.56 HMC AR
  • 1.56
  • 65/70/75MM
  • NK55, Monomer From Japan
  • 44
  • 1.1
  • 97%
  • HMC/AR/Anti-Reflective
  • Base:50~1000
Quantity:

Video

Technical Data

 1.56 Semi Finished Lens
 Material: 1.56 Index Resin(Ne=1.530, Abbe value=44, Specific gravity=1.10 )

Diameter

(mm)

Nominal
Curve

Front

Radius

T.CBack
Radius
BACK
T.C
CT/ETFrong sag
Ring (50mm)
RX Range
Recommended
ɸ700.00
0.00
0.0016.0/16.00.00-11.00Dto-26.00D
ɸ70000B1998.370.27102.685.169.6/16.00.16-7.25Dto-11.00D
ɸ70100B453.081.17102.685.169.4/14.00.69-7.00Dto-10.00D
ɸ70200B245.642.16102.685.169.7/13.71.28-6.25Dto-9.00D
ɸ70300B165.593.287.256.0710.7/13.01.90-2.00Dto-6.00D
ɸ70400B130.664.0687.256.078.7/11.22.41-2.00Dto+2.00D
ɸ70500B105.565.02139.453.808.0/6.53.00+3.00Dto-3.00
ɸ70600B87.186.0887.256.0710.0/10.03.66+2.25Dto+6.00D
ɸ70700B76.026.97139.453.8010.0/6.04.23+2.00Dto+5.00D
ɸ70800B66.497.9787.256.079.5/6.84.88+6.25Dto+8.00D
ɸ701000B52.3710.12139.453.8015.2/6.06.35+6.25Dto+8.01D




Features

1. The definition and production of semi-finished lenses



Semi-finished lens is the raw blank used to produce the most individualized RX lens according to thepatient's prescription. Different prescription powers request for different semi-finished lens types or base curves.



The semi-finished lenses are produced in a casting process. Here, liquid monomers are first poured into moulds. Various substances are added to the monomers, e.g. initiators and UV absorbers. The initiator triggers a chemical reaction that leads to hardening or "curing" of the lens, while the UV absorber increases the UV absorption of the lenses and prevents yellowing.

Eyeglass Semi Finished Lens Blanks 1.56 Single Vision High Transmission



2. Minus and plus semi-finished lenses



Lenses with different dioptric powers can be made from one semi-finished lens. The curvature of the front and back surfaces indicates whether the lens will have a plus or minus power.



Semi-finished lens is the raw blank used to produce the most individualized RX lens according to the patient's prescription. Different prescription powers request for different semi-finished lens types or base curves.



Rather than just the cosmetic quality, semi-finished lenses are more about the inner quality, such as precise and stable parameters, especially for the prevailing freeform lens.

1) High qualified rate in power accuracy, tability, cosmetics quality



2) High optical features

3) Good tinting effects and hard-coating/AR coating results

4) Realize the maximum production capacity



5) Punctual delivery

Eyeglass Semi Finished Lens Blanks 1.56 Single Vision High Transmission


Coating

Eyeglass Semi Finished Lens Blanks 1.56 Single Vision High Transmission

Hard Coating

It also can be named as anti-scratch coating, the function of this coating is to protect the surface of the lenses from impact and scratch reisitance.

 AR Coating

It also can be named as hard multi coated, that means coating an anti-reflective film on the hard coating lens, can protect the lens effectively from reflection and glare, enhance functional and charity of your vision

 Super Hydrophobic Coating

To make the lens waterproof, antistatic, anti slip and oil resistance.
